Raspberry Piの自己証明書SSL作成

自己証明書でなく無料で利用ができるLet's Encript（参考記事（Let's Encrypt導入））を利用したかったのですが、メインのWEBサーバーであるSynologyがPort80を利用しており、現時点のLet's Encrypt証明書を入手するツールにおいて、Port80以外の8080などでhttp通信を待ち受けているサイトでの簡単なSSL証明書作成および入手方法が見つかりませんでした。
手動発行やSynologyからフックさせる方法はありそうでしたが、今後の3ヶ月毎の自動更新などを考え、利用を諦めました。HTTPのポート番号指定「--http-01-port 8080」やHTTPSのポート番号指定「--tls-sni-01-port 4443」を実施しましたが、最初にポート80へのアクセスが発生しておりました。
そこで、 今回は昔ながらの自己証明書作成を実施しました。

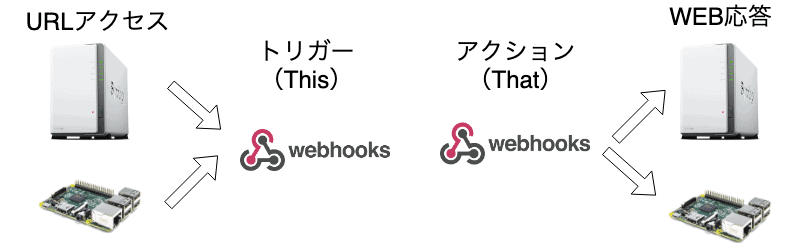

現在運用しているシステム構成イメージ（API連携プラットフォーム）

SSL証明書作成

以下コマンド一覧です。

@raspberrypi:~ $ su -
Password:
root@raspberrypi:~# cd /etc/ssl/private/
root@raspberrypi:/etc/ssl/private# openssl genrsa -aes256 -out server.key 2048
root@raspberrypi:/etc/ssl/private# openssl req -new -days 3650 -key server.key -out server.csr

apacheのSSL関係の構成定義ファイルに作成した証明書を登録します。「/etc/apache2/sites-available/default-ssl.conf」
しかし、現時点で作成したSSLのサーバ証明書はパスワードが設定されているので、apacheサーバ再起動時にパスワード入力が必要となるので、パスワード不要なサーバー証明書を後程作成しなおします。

##change
#SSLCertificateFile /etc/ssl/certs/ssl-cert-snakeoil.pem
#SSLCertificateKeyFile /etc/ssl/private/ssl-cert-snakeoil.key
##change
SSLCertificateFile /etc/ssl/private/server.crt
SSLCertificateKeyFile /etc/ssl/private/server.key

以下、コマンドログです。

@raspberrypi:~ $ su -
Password:

Wi-Fi is currently blocked by rfkill.
Use raspi-config to set the country before use.

root@raspberrypi:~# cd /etc/ssl/private/
root@raspberrypi:/etc/ssl/private# openssl genrsa -aes256 -out server.key 2048
Generating RSA private key, 2048 bit long modulus (2 primes)
....................................+++++
....................+++++
e is 65537 (0x010001)
Enter pass phrase for server.key:パスワード
Verifying - Enter pass phrase for server.key:パスワード
root@raspberrypi:/etc/ssl/private#
root@raspberrypi:/etc/ssl/private# openssl req -new -days 3650 -key server.key -out server.csr
Ignoring -days; not generating a certificate
Enter pass phrase for server.key:パスワード
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:JP
State or Province Name (full name) [Some-State]:Tokyo
Locality Name (eg, city) []:Tokyo
Organization Name (eg, company) [Internet Widgits Pty Ltd]:MIKI-IE
Organizational Unit Name (eg, section) []:IT
Common Name (e.g. server FQDN or YOUR name) []:miki-ie.com
Email Address []:mail@192.168.0.108

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:（空欄）
An optional company name []:（空欄）
root@raspberrypi:/etc/ssl/private# ls
server.csr  server.key  ssl-cert-snakeoil.key
root@raspberrypi:/etc/ssl/private#
root@raspberrypi:/etc/ssl/private# openssl x509 -in server.csr -out server.crt -req -signkey server.key -days 3650
subject=C = JP, ST = Tokyo, L = Tokyo, O = MIKI-IE, OU = IT, CN = miki-ie.com, emailAddress = mail@192.168.0.108
Getting Private key
Enter pass phrase for server.key:パスワード
root@raspberrypi:/etc/ssl/private# ls
server.crt  server.csr  server.key  ssl-cert-snakeoil.key
root@raspberrypi:/etc/ssl/private#
root@raspberrypi:/etc/ssl/private# cd /etc/apache2/sites-available/
root@raspberrypi:/etc/apache2/sites-available# ls
000-default.conf  default-ssl.conf
root@raspberrypi:/etc/apache2/sites-available# vi default-ssl.conf
root@raspberrypi:/etc/apache2/sites-available# cat default-ssl.conf
<IfModule mod_ssl.c>
        <VirtualHost _default_:4443>
                ServerAdmin webmaster@192.168.0.108

                DocumentRoot /var/www/html

                # Available loglevels: trace8, ..., trace1, debug, info, notice, warn,
                # error, crit, alert, emerg.
                # It is also possible to configure the loglevel for particular
                # modules, e.g.
                #LogLevel info ssl:warn

                ErrorLog ${APACHE_LOG_DIR}/error.log
                CustomLog ${APACHE_LOG_DIR}/access.log combined

                # For most configuration files from conf-available/, which are
                # enabled or disabled at a global level, it is possible to
                # include a line for only one particular virtual host. For example the
                # following line enables the CGI configuration for this host only
                # after it has been globally disabled with "a2disconf".
                #Include conf-available/serve-cgi-bin.conf

                #   SSL Engine Switch:
                #   Enable/Disable SSL for this virtual host.
                SSLEngine on

                #   A self-signed (snakeoil) certificate can be created by installing
                #   the ssl-cert package. See
                #   /usr/share/doc/apache2/README.Debian.gz for more info.
                #   If both key and certificate are stored in the same file, only the
                #   SSLCertificateFile directive is needed.
#SSLCertificateFile     /etc/ssl/certs/ssl-cert-snakeoil.pem
#SSLCertificateKeyFile /etc/ssl/private/ssl-cert-snakeoil.key
##miki
SSLCertificateFile /etc/ssl/private/server.crt
SSLCertificateKeyFile /etc/ssl/private/server.key

                #   Server Certificate Chain:
                #   Point SSLCertificateChainFile at a file containing the
                #   concatenation of PEM encoded CA certificates which form the
                #   certificate chain for the server certificate. Alternatively
                #   the referenced file can be the same as SSLCertificateFile
                #   when the CA certificates are directly appended to the server
                #   certificate for convinience.
                #SSLCertificateChainFile /etc/apache2/ssl.crt/server-ca.crt

                #   Certificate Authority (CA):
                #   Set the CA certificate verification path where to find CA
                #   certificates for client authentication or alternatively one
                #   huge file containing all of them (file must be PEM encoded)
                #   Note: Inside SSLCACertificatePath you need hash symlinks
                #                to point to the certificate files. Use the provided
                #                Makefile to update the hash symlinks after changes.
                #SSLCACertificatePath /etc/ssl/certs/
                #SSLCACertificateFile /etc/apache2/ssl.crt/ca-bundle.crt

                #   Certificate Revocation Lists (CRL):
                #   Set the CA revocation path where to find CA CRLs for client
                #   authentication or alternatively one huge file containing all
                #   of them (file must be PEM encoded)
                #   Note: Inside SSLCARevocationPath you need hash symlinks
                #                to point to the certificate files. Use the provided
                #                Makefile to update the hash symlinks after changes.
                #SSLCARevocationPath /etc/apache2/ssl.crl/
                #SSLCARevocationFile /etc/apache2/ssl.crl/ca-bundle.crl

                #   Client Authentication (Type):
                #   Client certificate verification type and depth.  Types are
                #   none, optional, require and optional_no_ca.  Depth is a
                #   number which specifies how deeply to verify the certificate
                #   issuer chain before deciding the certificate is not valid.
                #SSLVerifyClient require
                #SSLVerifyDepth  10

                #   SSL Engine Options:
                #   Set various options for the SSL engine.
                #   o FakeBasicAuth:
                #        Translate the client X.509 into a Basic Authorisation.  This means that
                #        the standard Auth/DBMAuth methods can be used for access control.  The
                #        user name is the `one line' version of the client's X.509 certificate.
                #        Note that no password is obtained from the user. Every entry in the user
                #        file needs this password: `xxj31ZMTZzkVA'.
                #   o ExportCertData:
                #        This exports two additional environment variables: SSL_CLIENT_CERT and
                #        SSL_SERVER_CERT. These contain the PEM-encoded certificates of the
                #        server (always existing) and the client (only existing when client
                #        authentication is used). This can be used to import the certificates
                #        into CGI scripts.
                #   o StdEnvVars:
                #        This exports the standard SSL/TLS related `SSL_*' environment variables.
                #        Per default this exportation is switched off for performance reasons,
                #        because the extraction step is an expensive operation and is usually
                #        useless for serving static content. So one usually enables the
                #        exportation for CGI and SSI requests only.
                #   o OptRenegotiate:
                #        This enables optimized SSL connection renegotiation handling when SSL
                #        directives are used in per-directory context.
                #SSLOptions +FakeBasicAuth +ExportCertData +StrictRequire
                <FilesMatch "\.(cgi|shtml|phtml|php)$">
                                SSLOptions +StdEnvVars
                </FilesMatch>
                <Directory /usr/lib/cgi-bin>
                                SSLOptions +StdEnvVars
                </Directory>

                #   SSL Protocol Adjustments:
                #   The safe and default but still SSL/TLS standard compliant shutdown
                #   approach is that mod_ssl sends the close notify alert but doesn't wait for
                #   the close notify alert from client. When you need a different shutdown
                #   approach you can use one of the following variables:
                #   o ssl-unclean-shutdown:
                #        This forces an unclean shutdown when the connection is closed, i.e. no
                #        SSL close notify alert is send or allowed to received.  This violates
                #        the SSL/TLS standard but is needed for some brain-dead browsers. Use
                #        this when you receive I/O errors because of the standard approach where
                #        mod_ssl sends the close notify alert.
                #   o ssl-accurate-shutdown:
                #        This forces an accurate shutdown when the connection is closed, i.e. a
                #        SSL close notify alert is send and mod_ssl waits for the close notify
                #        alert of the client. This is 100% SSL/TLS standard compliant, but in
                #        practice often causes hanging connections with brain-dead browsers. Use
                #        this only for browsers where you know that their SSL implementation
                #        works correctly.
                #   Notice: Most problems of broken clients are also related to the HTTP
                #   keep-alive facility, so you usually additionally want to disable
                #   keep-alive for those clients, too. Use variable "nokeepalive" for this.
                #   Similarly, one has to force some clients to use HTTP/1.0 to workaround
                #   their broken HTTP/1.1 implementation. Use variables "downgrade-1.0" and
                #   "force-response-1.0" for this.
                # BrowserMatch "MSIE [2-6]" \
                #               nokeepalive ssl-unclean-shutdown \
                #               downgrade-1.0 force-response-1.0

        </VirtualHost>
</IfModule>

root@raspberrypi:/etc/apache2/sites-available# service apache2 restart
Enter passphrase for SSL/TLS keys for 127.0.1.1:4443 (RSA): *******

apache2/httpサービス再起動時にパスワード入力不要とする

1. 現在のserver証明書のバックアップ
2. パスワード無しの証明書を作成

元ファイルのバックアップ

# cp server.key server.key.org

パスフレーズの解除

# openssl rsa -in server.key -out server.key
